Μεταχειρισμένο εκτυπωτικό Roland Versacamm VP-540

ΠΟΥΛΗΘΗΚΕ

Μεταχειρισμένο εκτυπωτικό Roland Versacamm VP-540

Roland VP-540 Εκτυπωτικό και Κοπτικό 137εκ

Availability: Εξαντλημένο Κατηγορία:
  • Περιγραφή
  • Αξιολογήσεις (0)

Περιγραφή

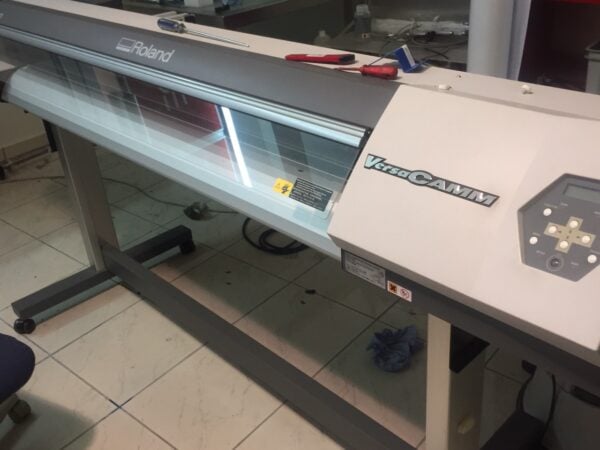

Μεταχειρισμένο εκτυπωτικό Roland VP540. Εκτυπωτικό και κοπτικό 137εκ

Μεταχειρισμένο εκτυπωτικό Roland VP-540 σε ΑΡΙΣΤΗ κατάσταση, με 4 κεφαλές EPSON DX4.
1440 dpi 17 τετρ.μέτρα την ώρα.
ΤΙΜΗ call €

Τεχνικά Χαρακτηριστικά

ModelVP-540VP-300
Printing technologyPiezoelectric inkjet
MediaWidth210 to 1,371 mm (8.3 to 54 in.)182 to 762 mm (7.2 to 30 in.)
ThicknessMaximum 1.0 mm (39 mil) with liner, for printing
Maximum 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
Roll outer diameterMaximum 180 mm (7 in.)
Roll weightMaximum 30 kg (66 lb.)Maximum 20 kg (44 lb.)
Core diameter50.8 mm (2 in.) or 76.2 mm (3 in.)
Printing/cutting width (*1)Maximum 1,346 mm (53 in.)Maximum 736 mm (29 in.)
Ink cartridgesTypeRoland ECO-SOL MAX INK
Capacity220 cc or 440 cc
ColorFour colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)Maximum 1,440 dpi
Cutting speed10 to 300 mm/s
Blade force30 to 300 gf
Software resolution (when cutting)0.025 mm/step
Distance accuracy (when printing) (*2)(*3)Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater
Distance accuracy (when cutting) (*3)Error of less than ±0.4 % of distance traveled, or ±0.3 mm, whichever is greater
When distance correction has been performed (when the setting for [CALIBRATION] – [CUTTING ADJ.] has been made):
Error of less than ±0.2 % of distance traveled, or ±0.1 mm, whichever is greater
Repeatability (when cutting) (*3) (*4)±0.1 mm or less
Alignment accuracy for printing and cutting (*3) (*5)±0.5 mm or less
Alignment accuracy for printing and cutting when reloading media (*3) (*6)Error of less than ±0.5 % of distance traveled, or ±3 mm, whichever is greater
Media heating system (*7)Print heater, setting range for the preset temperature: 30 to 45 °C (86 to 112 °F)
Dryer, setting range for the preset temperature: 30 to 50 °C (86 to 122 °F)
ConnectivityEthernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving functionAutomatic sleep feature
Power requirementsAC 100 to 120 V ±10 %, 8.3 A, 50/60 Hz or
AC 220 to 240 V ±10 %, 4.3 A, 50/60 Hz
AC 100 to 120 V ±10 %, 5.8 A, 50/60 Hz or
AC 220 to 240 V ±10 %, 3.0 A, 50/60 Hz
Power consumptionDuring operationApprox. 1,110 WApprox. 780 W
Sleep modeApprox. 34 WApprox. 33 W
Acoustic noise levelDuring operation64 dB (A) or less (according to ISO 7779)
During standby40 dB (A) or less (according to ISO 7779)
DimensionsWith stand2,310 (W) x 740 (D) x 1,125 (H) mm
[90.9 (W) x 29.1 (D) x 44.3 (H) in.]
1,700 (W) x 740 (D) x 1,125 (H) mm
[66.9 (W) x 29.1 (D) x 44.3 (H) in.]
With ink-cartridge tray and stand2,310 (W) x 1,000 (D) x 1,125 (H) mm
[90.9 (W) x 39.4 (D) x 44.3 (H) in.]
1,700 (W) x 1,000 (D) x 1,125 (H) mm
[66.9 (W) x 39.4 (D) x 44.3 (H) in.]
Weight (with stand)112 kg (247 lb.)89 kg (196 lb.)
EnvironmentPower onTemperature: 15 to 32 °C (59 to 90 °F) [20 °C (68 °F) or more recommended],
Humidity: 35 to 80 %RH (non-condensing)
Power offTemperature: 5 to 40 °C (41 to 104 °F), humidity: 20 to 80 %RH (non-condensing)
Included itemsStand, power cord, ink-cartridge tray, blade, blade holder, media clamps, media flanges, replacement blade for separating knife, cleaning kit, software RIP, and user’s manual, etc.
